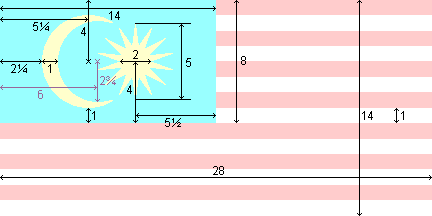

![[Construction Sheet (Malaysia)]](../images/m/my'.gif)
by António Martins modified by Željko Heimer
See also:
Other sites:
Dov Gutterman reported a construction sheet in the Jalur Gemilang website.
António Martins, 14 September 1999
Since the dimensions given by António Martins were obtained measuring by hand (in a lighter shade of grey in the above image), it could easily be that the distance of the inner circle (defining the crescent) to the hoist should be precisely 6 units (rather than 5 + 11/12 units) which would place it neatly in the hoistmost point of the circle circumscribing the star. If so, the radius of the inner circle is 2.75 (2 ¾), i.e. the diameter is 5.5 which is a not very weird number since it is already used once in the construction sheet explicitly (distance from fly end of canton to center of the star).
Željko Heimer, 25 May 2002
Also because it is reasonable to think that:
Santiago Dotor, 5 April 2005
I found a document with a construction sheet and color specifications with Pantone colors: Blue 2768, Red 199, Yellow 108. Matching CMYK is Blue 100-0-0-0, Red 0-100-100-0, Yellow 0-0-100-0. (Please note that red and blue Pantone values are swapped with each other). (Source)
Zoltan Horvath, 4 July 2024
